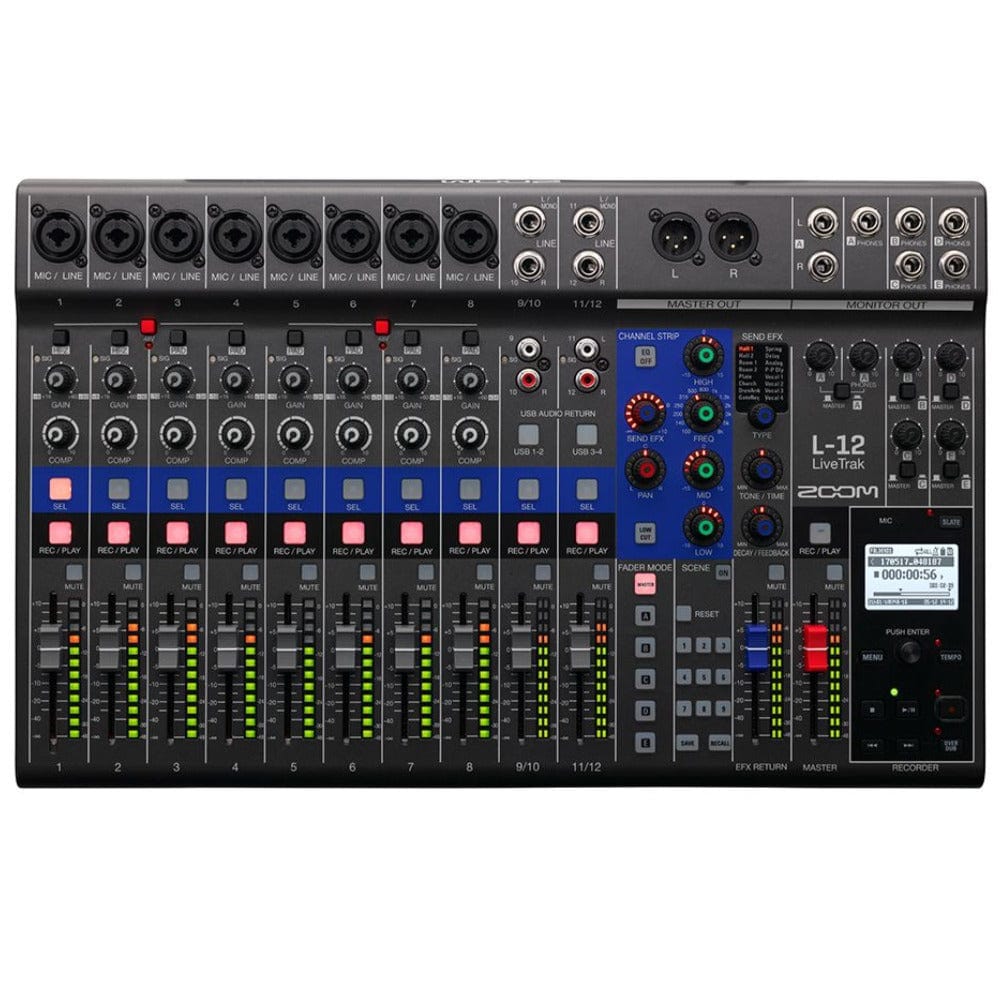

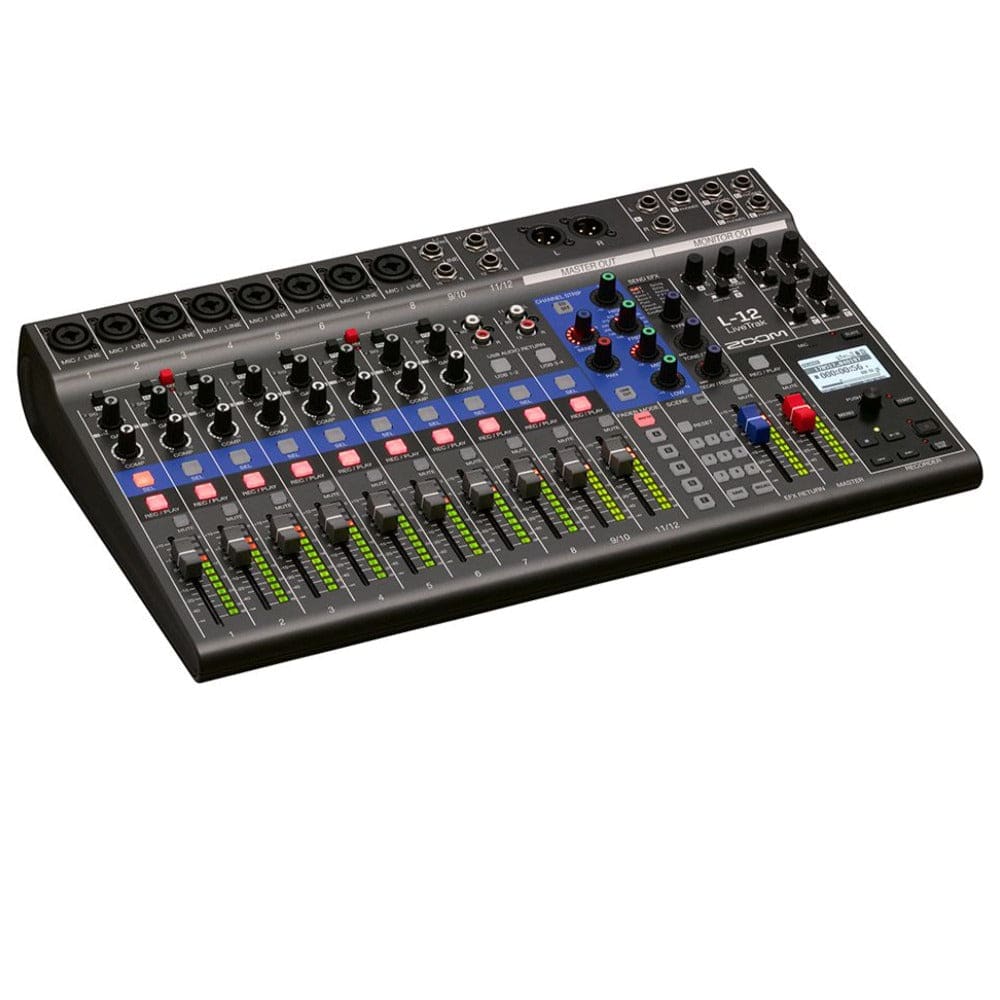

ZOOM L-12 Livetrak Digital Mixer

ZOOM L-12 Livetrak Digital Mixer Overview:

With the LiveTrak L‑12, you can finally mix, record, and monitor with a single piece of gear. It’s the only digital console that lets you mix your live performance and record up to 12 discrete channels – all while providing five individual custom headphone mixes.

Effortless Live Mixing
LiveTrak’s 12 discrete channels (eight mono plus two stereo) have a 3-band mid-parametric EQ and 16 built-in send effects. Its eight mono channels also have a dedicated compressor.
With all these controls plus its 12-segment LED metering, the L-12 offers just what you need for intuitive mixing.

Record Everything, Remix Anywhere
LiveTrak lets you record 12 discrete tracks up to 24-bit/96 kHz WAV audio to an SD cardwhile simultaneously mixing your live show. Tracks are recorded pre-EQ and effects, so they can be transferred to your favorite DAW
for further mixing and editing.

Five Custom Monitoring Mixes
Each of LiveTrak’s five monitor outputs provides a unique mix, so every performer can create and save a mix that’s tailored to their preferences. Its headphone amplifier delivers volume that stands up in any live environment without the need for a separate headphone monitoring setup.

USB Connectivity for Your DAW
LiveTrak is also a 14-in/4-out USB audio interface with flexible routing options, offering unlimited possibilities. Class compliant mode, which enables connection with iOS devices, is also supported.

Our Best Mic Preamps Yet
At -128 dBu EIN with +60 dB maximum input gain, LiveTrak is equipped with the quietest and most advanced preamps we’ve ever made. Just wait until you hear how incredible it sounds.

High-Definition Sample Rates
The L-12 supports sample rates up to 96 kHz when recording to an SD card, allowing you to record in high definition. In Audio Interface mode, the L-12 can record up to 48 kHz to a computer and an SD card simultaneously.

Convenient Auto Recording
Record automatically by adjusting the L-12’s customizable audio input commands. Set it to start when the master fader detects a certain dB level, or use a guitar chord or snare hit to start the track. You can capture data up to two seconds before recording starts, in case a performance begins ahead of time.

Versatile Operation Modes
The L-12 is equipped with several operation modes. Audio Interface mode lets you route inputs and outputs to any DAW.

With USB Host mode, transfer projects and audio files to a connected USB flash drive. In Card Reader mode, the L-12 acts as an SD card reader, allowing you to transfer audio files to and from your computer.

Features:

• 12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4-inch connectivity
• 14-track simultaneous recording, 12-track playback
• 14-in/4-out USB audio interface connectivity
• 5 powered headphone outputs, each with a customizable and saveable mix
• Add backing/click tracks from your computer to your live mix and recording
• RCA and TRS line inputs
• 48V phantom power (channels 1-4 and 5-8)
• Hi-Z connectivity (channels 1 and 2)
• 26 dB pad (channels 3-8)
• Built-in compression control (Channels 1-8)
• Digital level meters -48 dB to 0 dB
• Master mute button
• Low-cut control
• Stereo panning
• Master and Monitor Outputs A-E
• Scene saving function, up to 9 scenes saved at a time
• 16 built-in delay and reverb effects with adjustable parameters
• Built-in slate mic
• Class-compliant mode (for iOS compatibility)
• SD card input
• Built-in metronome
• Automatic recording starting/stopping capability
• Project protection
• Import/export projects with USB 2.0 host port
• Latency adjustment for A-to-D conversion
• Compatible functions for ZOOM FS01 footswitch

Specifications:
NUMBER OF INPUT AND OUTPUT CHANNELS

• INPUTS: Mono (MIC/LINE): 8 Stereo (LINE): 2
• OUTPUTS: MASTER OUT: 1 MONITOR OUT: 5

INPUTS

• MONO (MIC/LINE):
• Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
• Input gain | PAD OFF: +16 - +60 dB, PAD ON: −10 – +34 dB, Hi-Z ON: +6 - +50 dB
• Input impedance | XLR: 3 kΩ, TRS: 10kΩ/1 MΩ (when Hi-Z ON)
• Maximum input level | PAD OFF: 0 dBu (at 0 dBFS), PAD ON: +26 dBu (at dBFS)
• Phantom Power | +48 V
• STEREO (LINE):
• Type: TS phone/RCA pin (unbalanced) jacks
• Maximum input level : +10 dBu

OUTPUTS

• MASTER OUT:
• Type: XLR jacks (balanced)
• Maximum output level: +14.5 dBu
• Output impedance: 100 Ω
• MONITOR OUT A (TRS):
• Type: TRS phone jacks (balanced)
• Maximum output Level: +14.5 dBu
• Output impedance: 100 Ω
• MONITOR OUT A-E (PHONES):
• Type: Standard Stereo phone jacks
• Maximum output level: 42 mW + 42 mW at 60 Ω
• Output impedance: 100 Ω

BUSES

• MASTER: 1
• MONITOR: 5
• SEND EFX: 1

CHANNEL STRIP
COMP:

• LOW CUT: 75 Hz, 12 dB/OCT
• EQ: HIGH: 10 kHz, ± 15 dB, shelving, MID: 100 Hz-8 kHz, ±15 dB, peaking, LOW: 100 Hz, ± 15 dB, shelving

LEVEL METERS

• LEVEL SEGMENTS: 12

SEND EFFECTS

• 16 TYPES: Hall 1 & 2 (reverb)
• Room 1 & 2(reverb)
• Plate (reverb)
• Church (reverb)
• DrumAmb (reverb)
• GateRev (reverb)
• Spring (reverb)
• Delay (delay)
• Analog (delay)
• P-P Dly (delay)
• Vocal 1-4 (delay + reverb)

RECORDER

• MAXIMUM SIMULTANEOUS RECORDING TRACKS: 14 at 44.1/48 kHz (12 channel + stereo mix). 12 at 96 kHz
• MAXIMUM SIMULTANEOUS PLAYBACK TRACKS: 12
• RECORDING FORMAT: WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo WAV format
• RECORDING MEDIA: 16 MB - 2 GB SD cards, 4 GB - 32 GB SDHC cards, 64 GB - 1 TB SDXC cards

AUDIO INTERFACE

• 44.1/48 KHZ: Recording: 14 channels, Playback: 4 channels
• BIT DEPTH: 24-bit
• INTERFACE: USB 2.0

SYSTEM REQUIREMENTS FOR AUDIO INTERFACE MODE

• WINDOWS: OS: Windows 8.1 / 10 / 11 (32bit/64bit) CPU: Intel Core i3 or faster*USB: USB 3.0/USB 2.0** * Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD.** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.
• MAC: OS: macOS 10.14 ~ 13 CPU: Intel Core i3 or fasterUSB: USB 3.0/USB 2.0* * Operation is not guaranteed when used with USB hubs or expansion cards.
• IPHONE/IPAD: OS： iOS 8 ~ 16, iPadOS 16 * Apple Lightning-to-USB Camera Adapter required.

CARD READER

• CLASS: Mass storage, USB 2.0 High Speed

USB HOST

• CLASS: USB 2.0 High Speed

FREQUENCY CHARACTERISTICS

• 44.1 KHZ: -1.0 dB: 20 Hz - 20 kHz
• 96 KHZ: -3.0 dB: 20 Hz - 40 kHz

EQUIVALENT INPUT NOISE

• ACTUAL MEASUREMENTS: -128 dB EIN (IHF-A) with +60 dB/150 Ω input
• DISPLAY: LCD with backlight (128x64 resolution)
• POWER SUPPLY: ZOOM AD-19 AC adapter (DC12 V/2 A)
• POWER CONSUMPTION: 17W maximum
• EXTERNAL DIMENSIONS: 445 mm (W) x 282 mm (D) x 70.5 mm (H) 17.5” (W) x 11.1” (D) x 2.78” (H)
• WEIGHT (MAIN UNIT ONLY): 2.53 kg / 5.58 lbs
