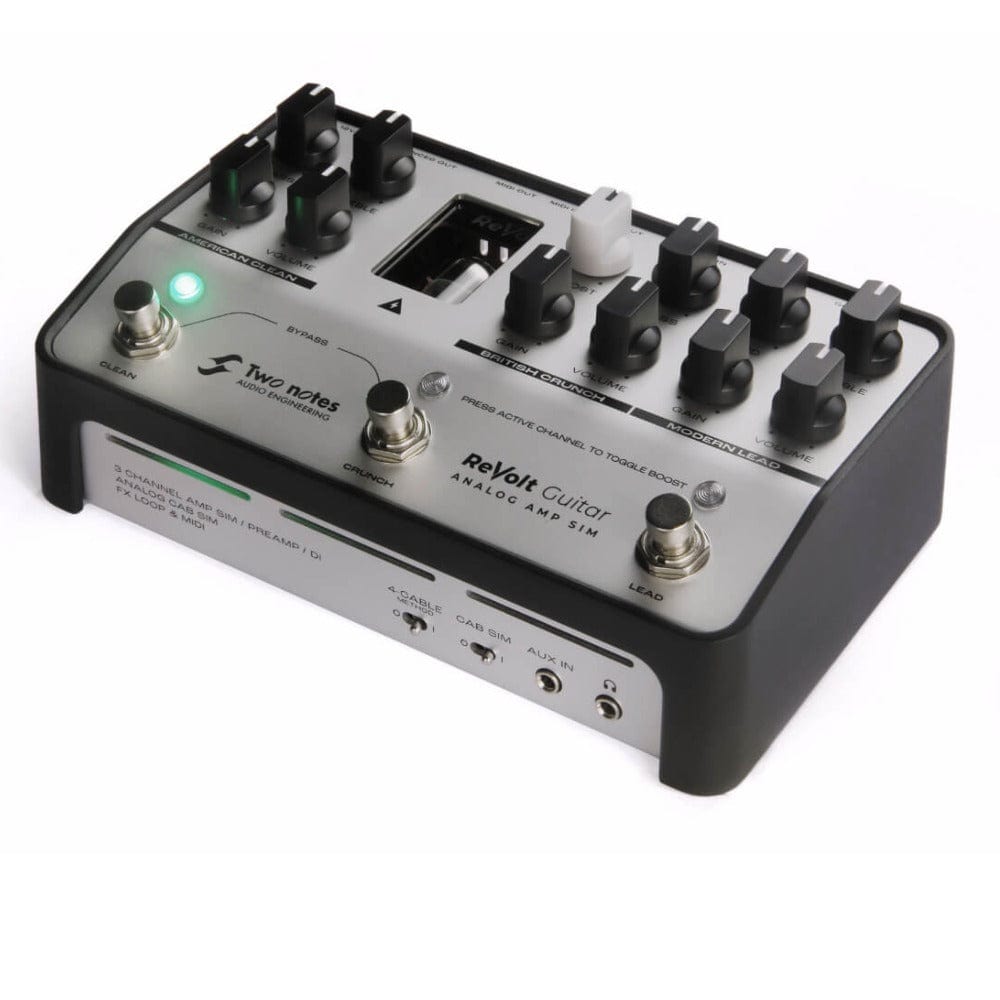

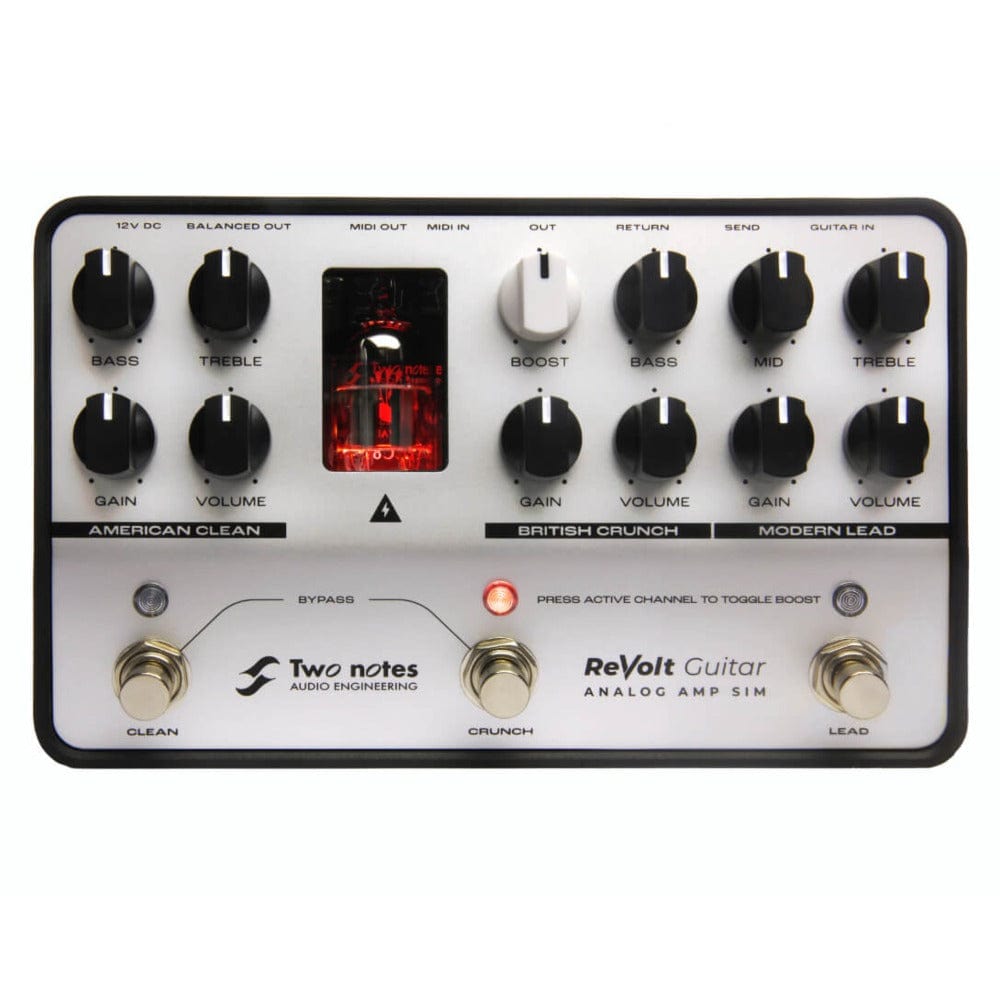

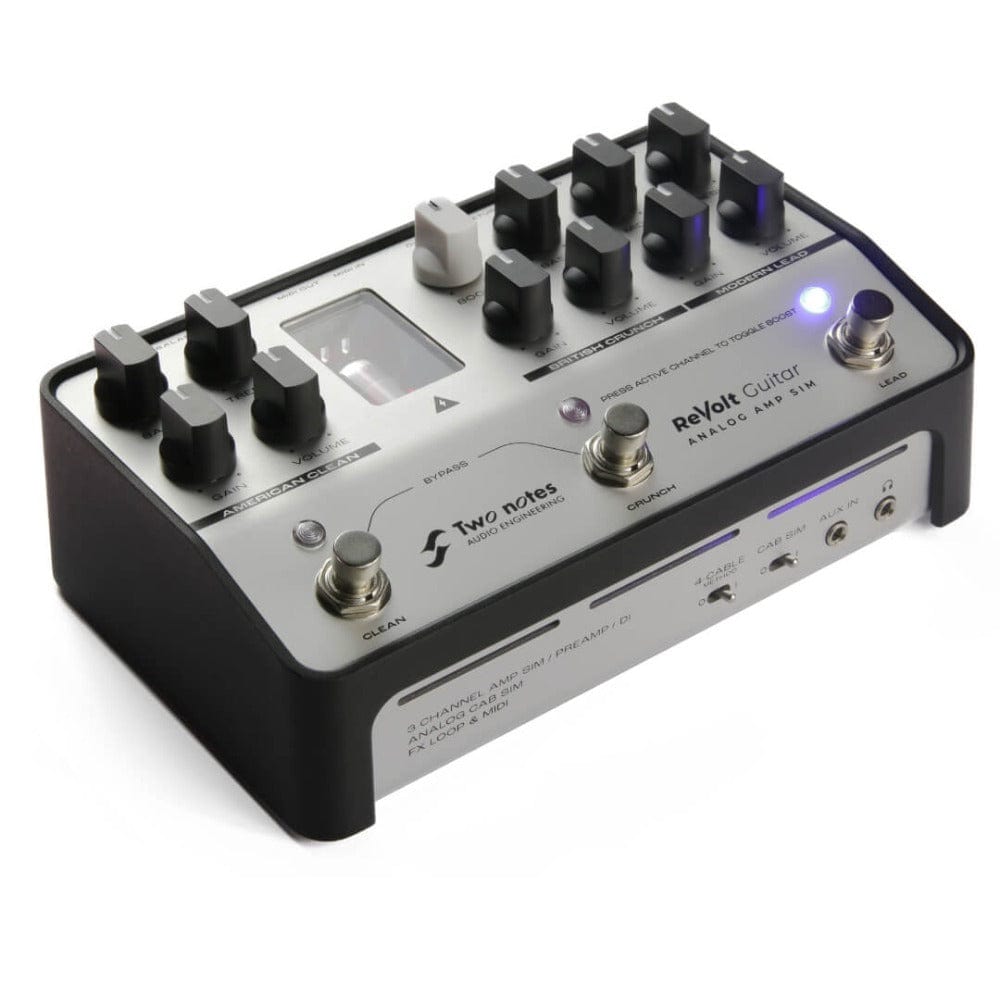

Two Notes Revolt Guitar Analog Amplifier Sim Pedal

Two Notes Revolt Guitar Analog Amplifier Sim Pedal Overview:

The ReVolt Guitar’s three channels deliver the full gamut of tones, from high-headroom cleans to hard-rock crunch to searing high-gain leads. You also get an integrated OD-Boost circuit to bolster your spotlight-stealing solos. An analog speaker simulation ensures a polished, miked-cab sound, both onstage and in the studio. Integrating the ReVolt Guitar with the rest of your rig is a cinch, thanks to a 4-cable mode, an FX loop, and MIDI I/O. This guitar preamp pedal also includes a collection of ten DynIRs for situations where you need more DI flexibility. Guitarists searching for a robust, made-to-move solution for their pedalboards and fly rigs will get tons of mileage out of the Two Notes ReVolt Guitar.

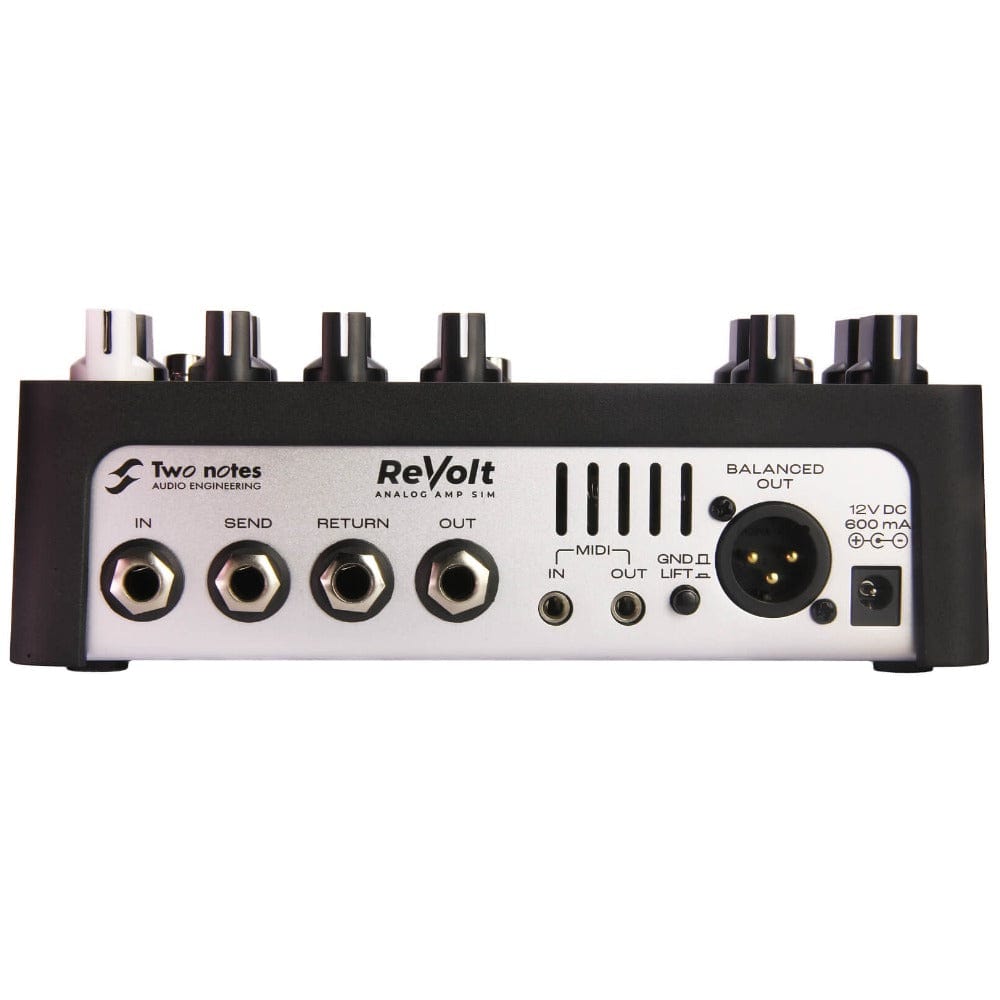

Input / Output
Input:

• Jack 6.35 mm (1/4”) unbalanced (TS, Tip/Sleeve)
• Impedance : 1 MOhms

Send:

• Jack 6.35mm(1/4“) unbalanced (TS)
• Max output level : +11dBu
• Impedance : 300 Ohms

Return:

• Jack 6.35mm(1/4“) unbalanced (TS)
• Max input level : +11dBu
• Impedance : 1 MOhms
• Unbuffered, directly connected to Output when active

Output:

• Jack 6.35 mm (1/4”) unbalanced (TS)
• Max output level : +11 dBu
• Impedance : 300 Ohms

DI Output:

• XLR, balanced
• Impedance : 600 Ohms balanced, 300 Ohms unbalanced
• Max output level : +11dBu
• Protected against +48V phantom power

Phones:

• Jack 3.5 mm (1/8“) stereo (TRS, Tip/Ring/Sleeve)
• Impedance : 39 Ohms

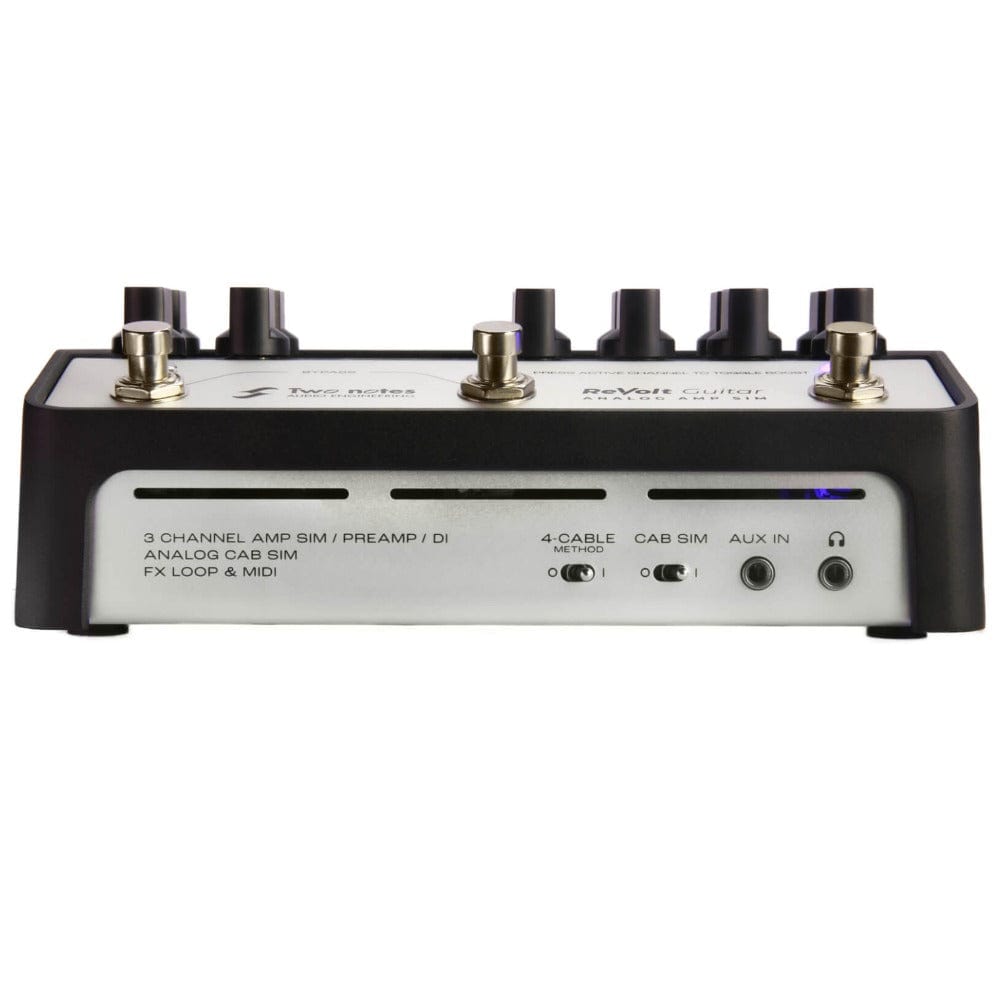

Aux In:

• Jack 3.5 mm (1/8“) stereo (TRS, Tip/Ring/Sleeve)
• Impedance : 10 kOhms

Preamp
Tube:

• PSVANE ECC83

Boost Circuit:

• +0 dB to +20dB, centered around 1.1 kHz

Power

• Mains power adaptor:
• DC Jack 2.1mm, negative center

Input voltage:

• 12V DC

Power consumption:

• Approx. 6W

Current draw:

• 600mA

Dimensions & weight

• Width x Depth x Height*:
• 19.2cm x 11.7cm x 7cm – 7.6″ x 4.6″ x 2.8″
• *Including connectors and knobs

Weight:

• 830 g / 1.82 lbs
