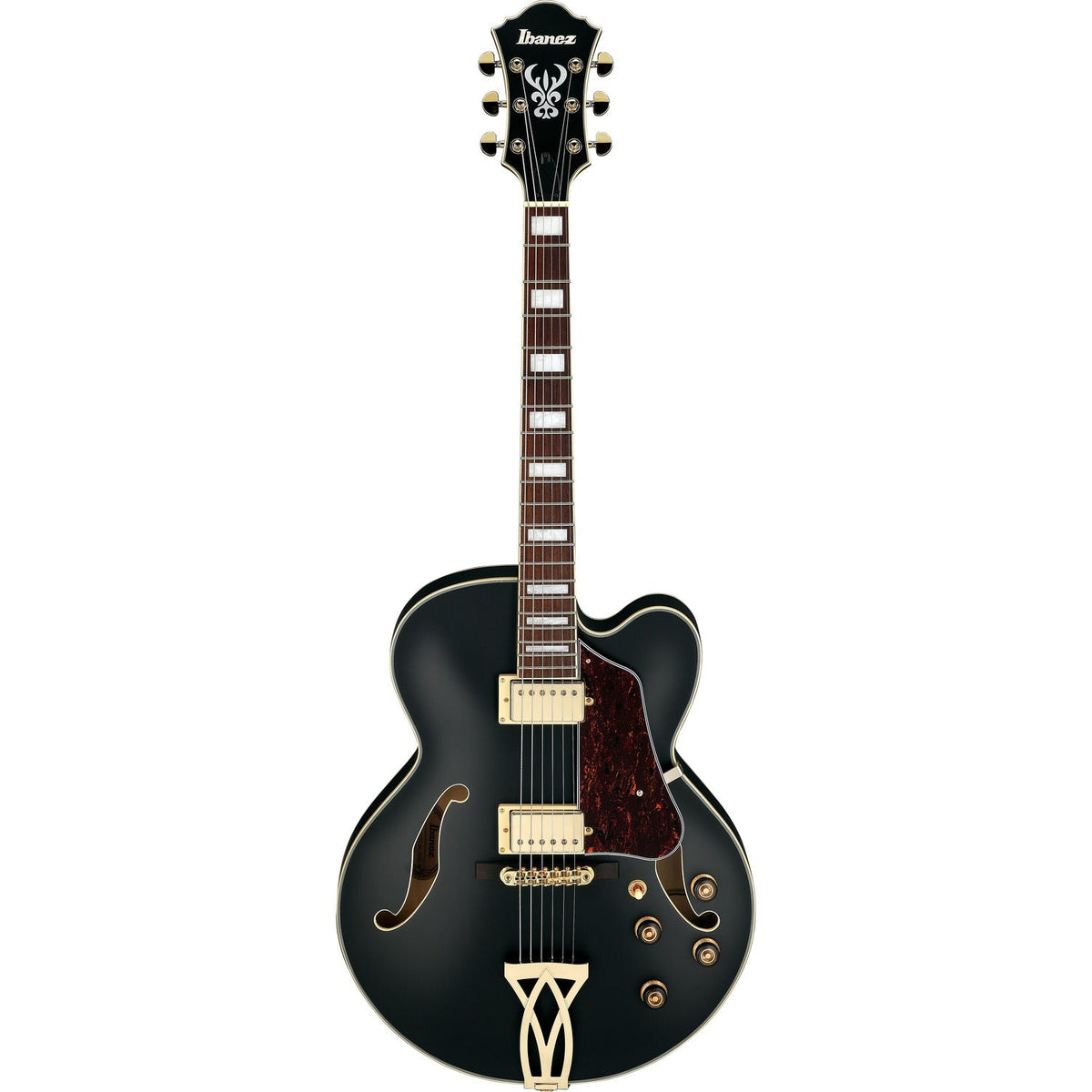

Ibanez AF75G Hollowbody Electric Guitar

Ibanez AF75G Hollowbody Electric Guitar Overview:

Feartures:

VT60 tailpiece
The artistically-designed VT60 tailpiece provides both great tuning stability and rich sustain.

Nyatoh neck
The Nyatoh neck provides a rich mid-low end.

Gibraltar Performer bridge
The Gibraltar Performer bridge provides rich sustain and tuning stability. The low-positioned saddles promise comfortable playability.

Walnut fretboard
A Walnut fretboard features a well-balanced tonal character from low to high end.

Classic Elite pickups
The Classic Elite pickups offer rich, nuanced tone with fat low-end.

Specifications:

• neck type: AF ArtcoreNyatohSet-in neck
• top/back/side: Linden top Linden backLinden sides
• fretboard: Bound Walnut fretboardAcrylic block inlay
• fret: Medium frets
• number of frets: 20
• bridge: Gibraltar Performer bridge
• string space: 10.5mm
• tailpiece: VT60 tailpiece
• neck pickup: Classic Elite (H) neck pickupPassive/Ceramic
• bridge pickup: Classic Elite (H) bridge pickupPassive/Ceramic
• factory tuning: 1E,2B,3G,4D,5A,6E
• string gauge: .010/.013/.017/.030/.042/.052
• hardware color: Gold

NECK DIMENSIONS

• Scale : 628mm
• a : Width 43mm at NUT
• b : Width 56.3mm at 20F
• c : Thickness 21mm at 1F
• d : Thickness 24mm at 9F
• Radius : 305mmR

BODY DIMENSIONS

• a : Length 19 1/2"
• b : Width 15 3/4"
• c : Max Depth 3 5/8"
