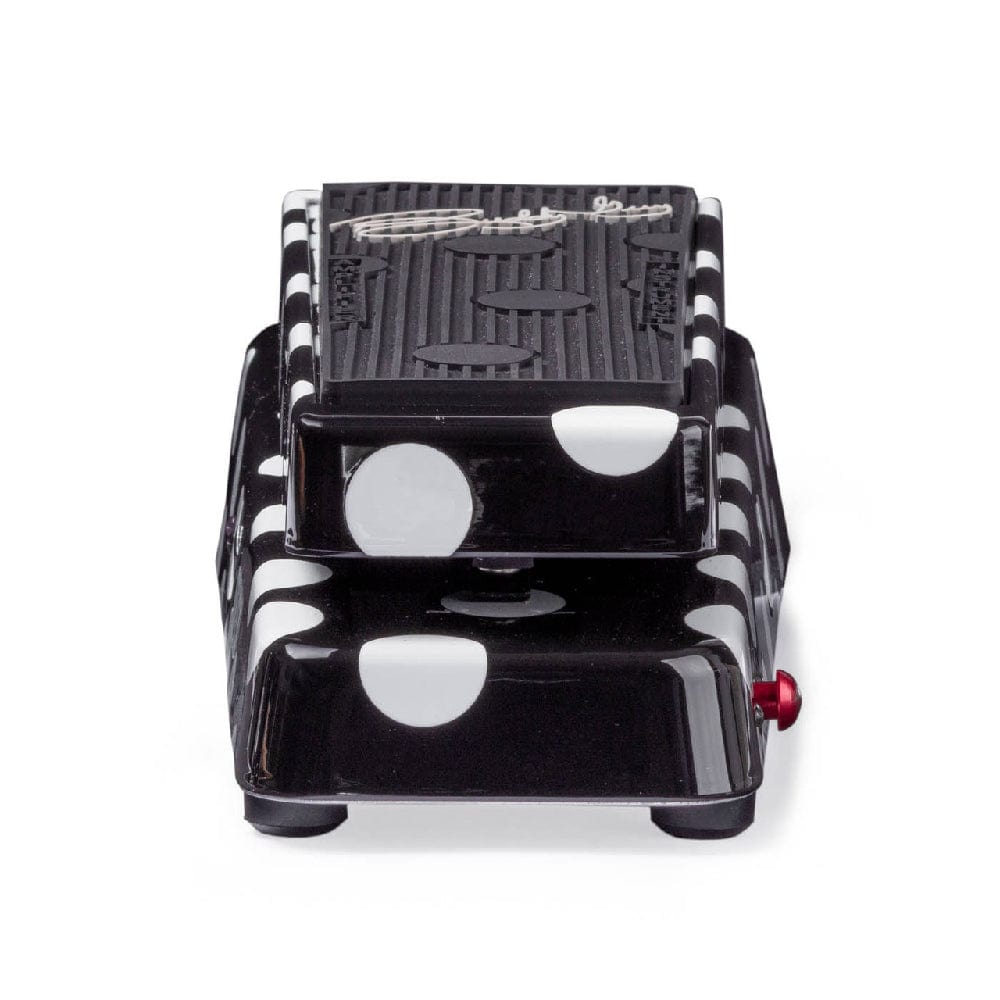

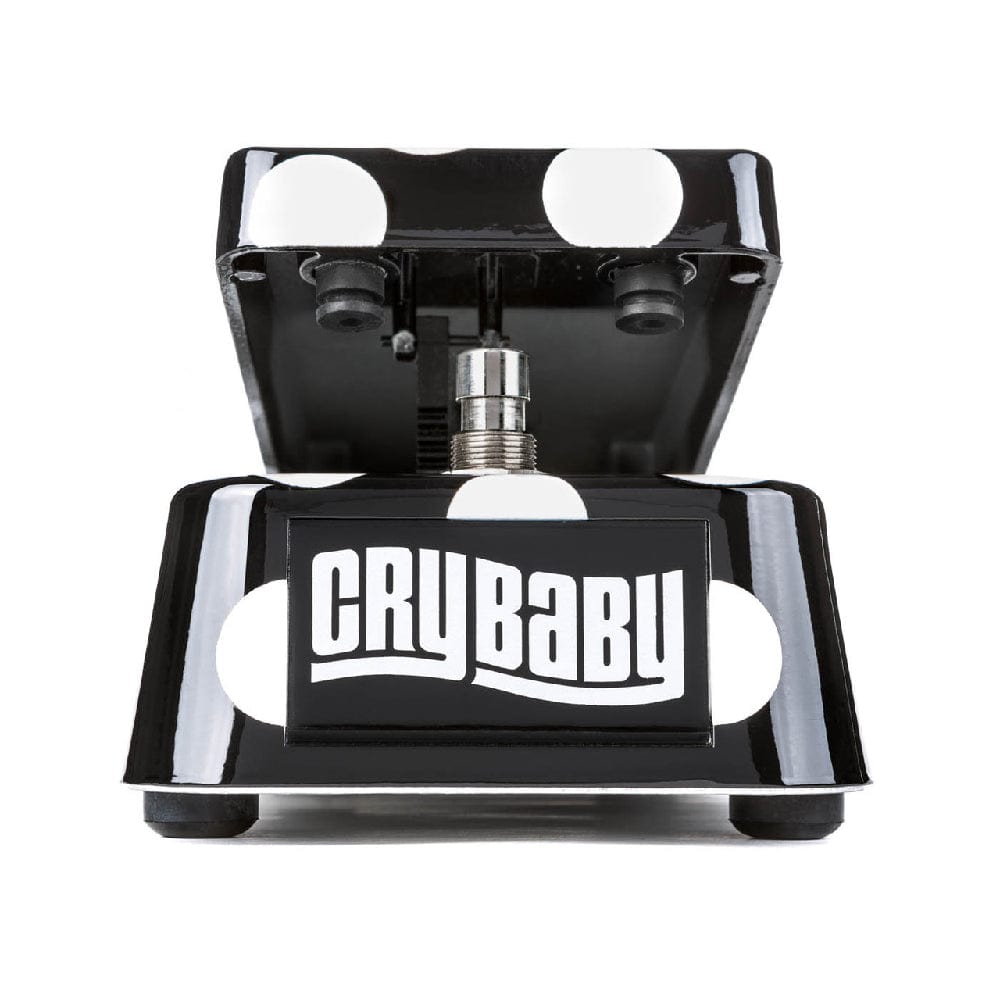

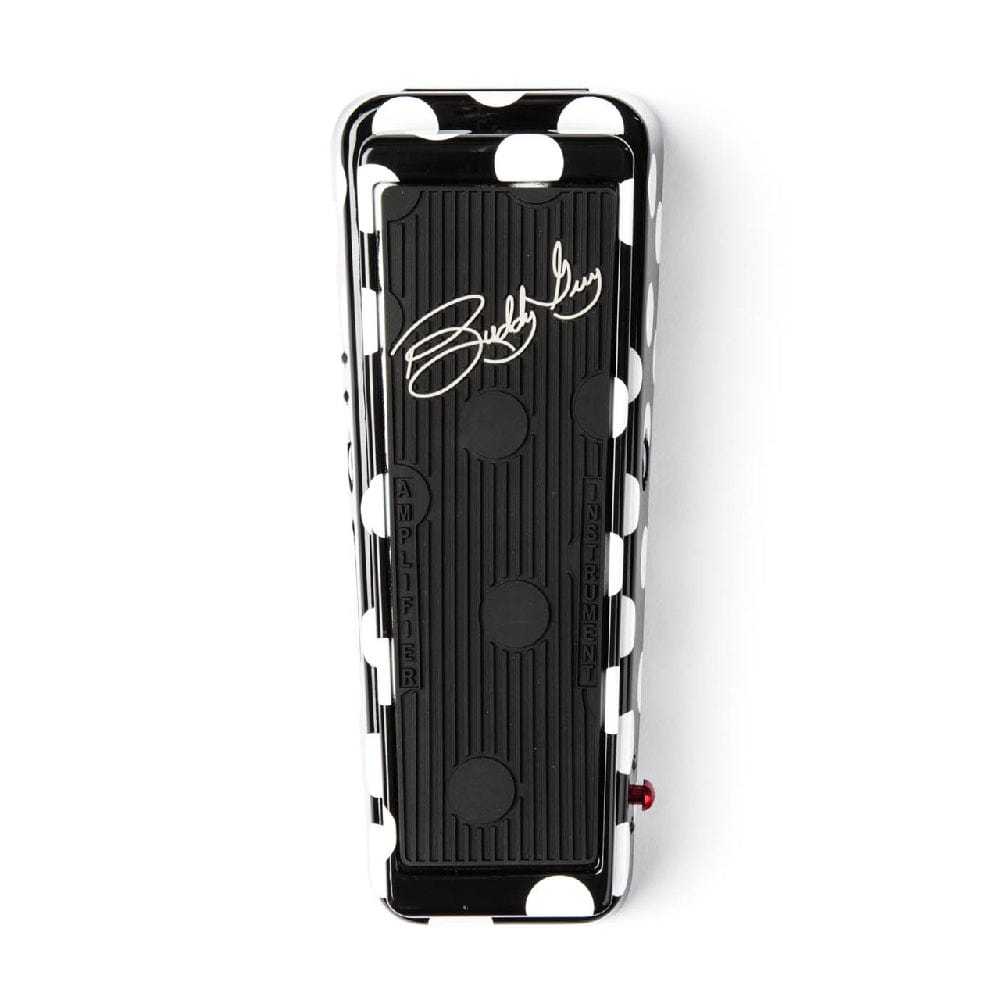

Dunlop BG95 Buddy Guy Cry Baby Wah Pedal

Dunlop BG95 Buddy Guy Cry Baby Wah Pedal Overview:

This Cry Baby Wah features the legendary Fasel Inductor and two distinct selectable voices—"Deep" for a big and throaty sound and "BG" for Buddy's bell-like tone.

This pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick, Iso-Brick, and Mini Iso-Brick power supplies (not included).

Technical Specifications

• Filter Parameters
• BG Mode
• Low Pass: 290Hz - 390Hz
• High Pass: 1.5kHz –1.9kHz
• DEEP Mode
• Low Pass: 250Hz - 330Hz
• High Pass: 1.3kHz –1.6kHz
• Input Impedance (Wah Active): 1MEG
• Output Impedance: <4.7K
• Maximum Input Level: -6dBm @ Filter’s Center Frequency
• Maximum Output Level: 7dBm
• Maximum Gain (Toe Down): 16dB
• Maximum Gain (Heel Down): 16dB
• S/N (Heel Down): >96dBV
• S/N (Toe Down): >95dBV
• Bypass Configuration: True Hardwire Bypass
• Power Requirements: <3.5mA @ 9V DC
